Technical Overview
Cooktop type
Gas cooktop
Total number of positions that can be used at the same time
4
stepFlame Technology
No
Frame type
Frameless
Basic surface material
Stainless steel
Material of pan supports
Steel with rubber feet
Gas type preset
Liquidgas G30,31 28-30/37 mbar
Specifications
Basic surface material
Stainless steel
Frame type
Frameless
Material of pan supports
Steel with rubber feet
Flat burner
No
Gas type preset
Liquidgas G30,31 28-30/37 mbar
Width
75 cm
Dimensions
45x762x520 mm
Dimensions of the packed product (HxWxD)
140x830x580 mm

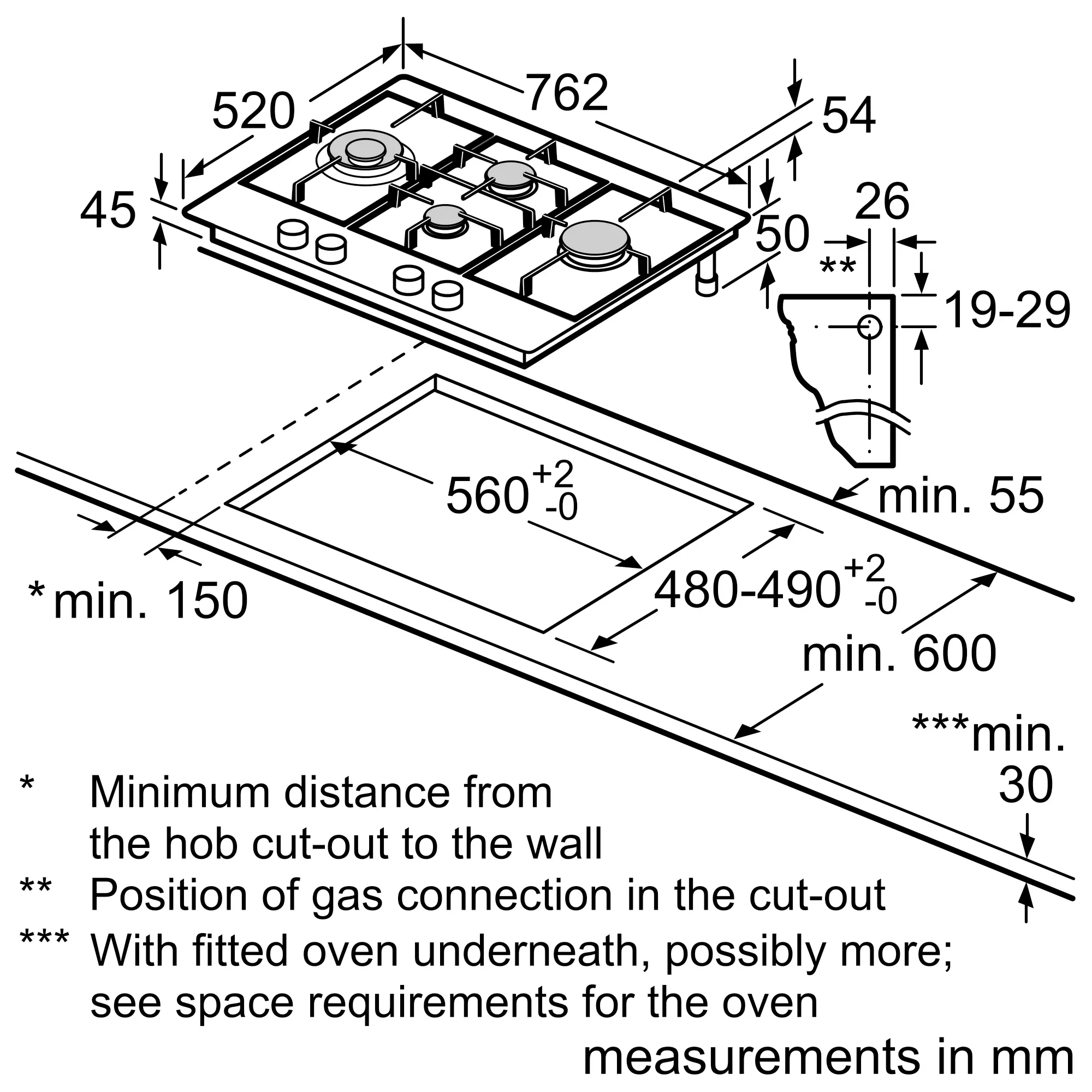

Required niche size for installation (HxWxD)
45 x 560-560 x 480-490 mm
Minimum worktop thickness (without spacer / with spacer, order seperately)
30 mm / 12 mm
Length electrical supply cord
100 cm
Plug type
No plug
Gas connection rating
9700 W
Total number of positions that can be used at the same time
4
Dual wok burner
No
Power of the heating elements (maximum values shown, depending on gas type)
1 x 1.0, 1 x 1.7, 1 x 3.0, 1 x 4.0 kW
Type Cooking zone
Standard burner, Economy burner, High-speed burner, WOK burner
stepFlame Technology
No
Display
No
Dishwasher suitable pan support
No
Removable knobs for easy cleaning
No
Location of control panel
Front
Type of control setting and signalling devices
Knob
Hob ignition
Knob ignition
One piece burner
No
Home Connect
No
Safety device
Flame failure safety device for each burner
Residual heat indicator
without
Main on/off switch
No
Included accessories
1 x wok attachment ring
