Technical Overview
Cooktop type
Gas cooktop
Total number of positions that can be used at the same time
3
stepFlame Technology
No
Frame type
Design frame
Basic surface material
Tempered glass
Material of pan supports
Matt enamel
Gas type preset
Liquidgas G30,31 28-30/37 mbar
Nozzle set included for alternative gas type
Nat gas H/E/(L) 20 (25) mbar
Specifications
Basic surface material
Tempered glass
Frame type
Design frame
Material of pan supports
Matt enamel
Flat burner
No
Gas type preset
Liquidgas G30,31 28-30/37 mbar
Nozzle set included for alternative gas type
Nat gas H/E/(L) 20 (25) mbar
Width
70 cm
Dimensions
80x780x450 mm
Dimensions of the packed product (HxWxD)
205x857x551 mm

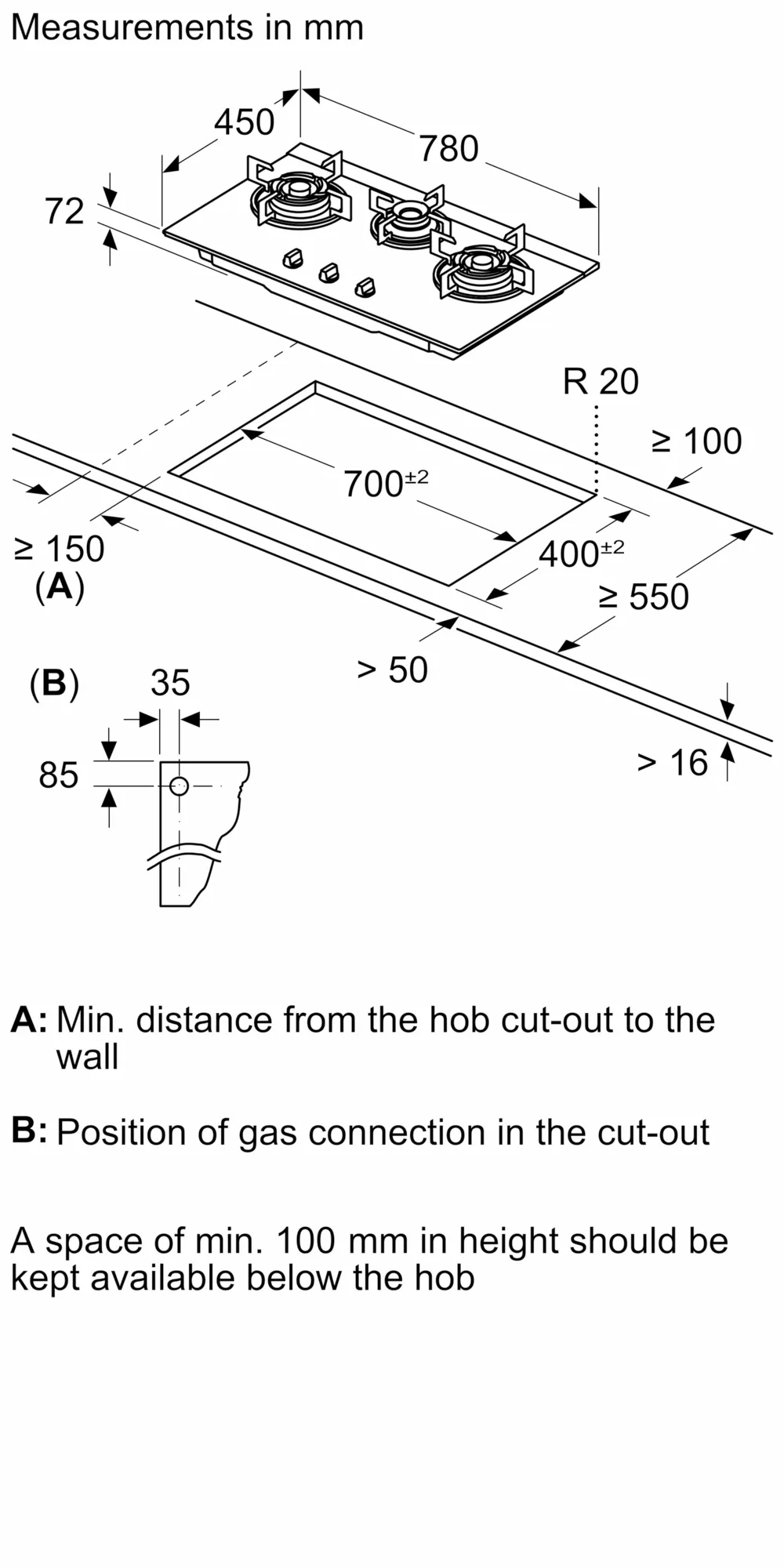

Required niche size for installation (HxWxD)
80 x 700-700 x 400-400 mm
Minimum worktop thickness (without spacer / with spacer, order seperately)
16 mm / 12 mm
Length electrical supply cord
120 cm
Gas connection rating
10000 W
Total number of positions that can be used at the same time
3
Dual wok burner
No
Power of the heating elements (maximum values shown, depending on gas type)
1 x 2.0, 2 x 4.0 kW
Type Cooking zone
Standard burner, WOK burner, WOK burner
stepFlame Technology
No
Display
No
Dishwasher suitable pan support
No
Removable knobs for easy cleaning
No

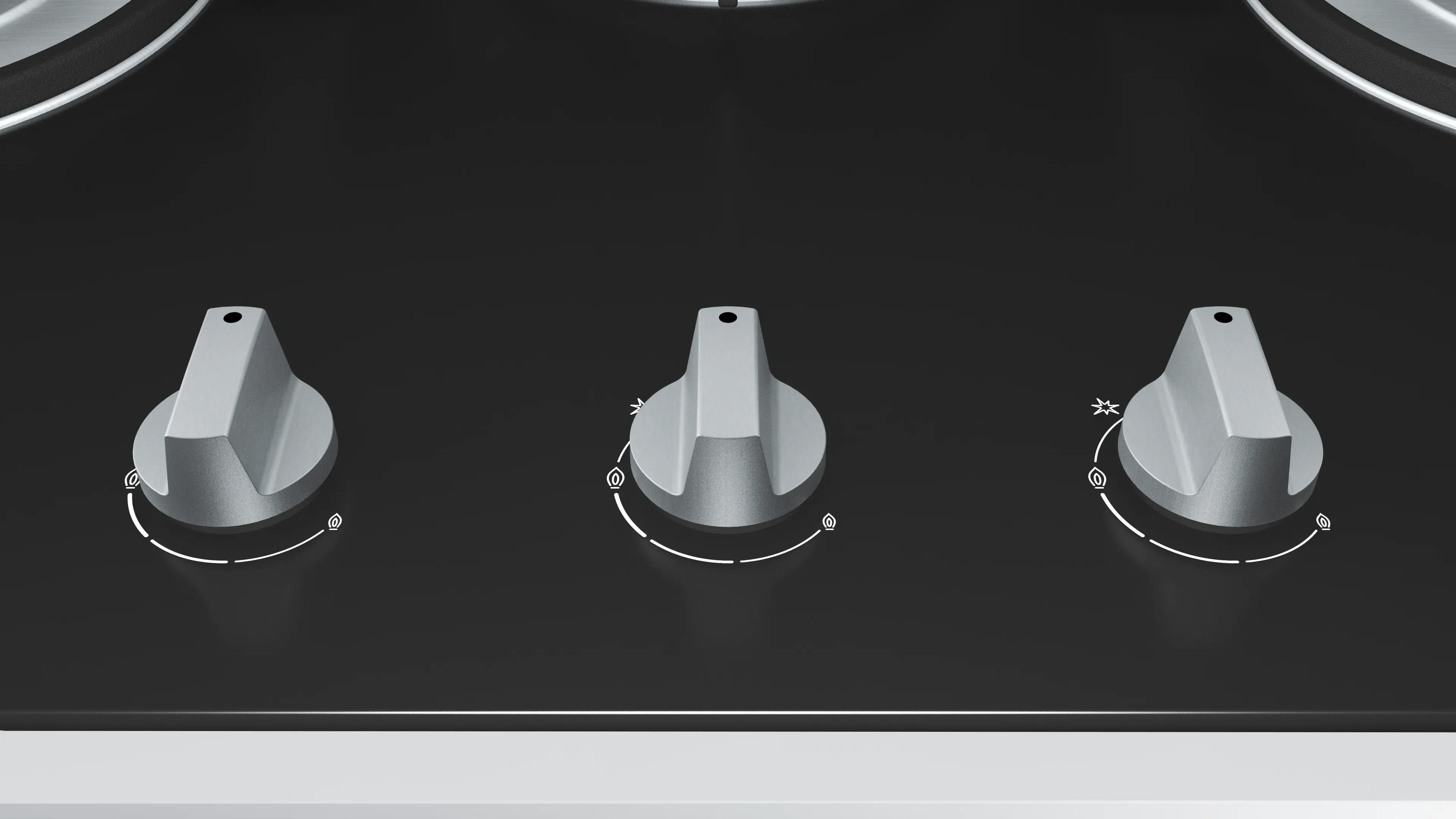

Location of control panel
Front
Hob ignition
Knob ignition
One piece burner
No
Home Connect
No
Safety device
,
Residual heat indicator
without
Main on/off switch
No
